When a 4×4 is transformed from a standard road vehicle into a serious off-road or overland machine, the suspension system must deal with significantly higher demands.
Additional fuel, recovery equipment, roof racks, bumpers, spare tires, camping equipment and larger wheels all increase vehicle weight.
At the same time, off-road driving creates much more suspension movement than normal road driving.
This is where 2.5-inch mono-tube off-road shocks become an important upgrade.
HPR Offroad Shocks offers a dedicated 2.5 MONO Tube product series for high-performance off-road and overland applications.
What Is a Mono-Tube Shock?
A mono-tube shock absorber uses a single main cylinder containing the working piston and fluid, with a gas chamber separated from the oil.
The design allows the shock to maintain consistent damping characteristics under demanding operating conditions.
Compared with many conventional twin-tube road-oriented dampers, a performance mono-tube shock is designed around higher levels of suspension control.
Why Does Shock Size Matter?
The shock absorber converts suspension movement into heat.
During aggressive off-road driving, the piston moves repeatedly through the oil. This creates significant heat.
If the shock cannot dissipate that heat effectively, damping performance can change as operating temperature rises.
A larger shock body can provide more internal volume and greater thermal capacity.
This is one reason why 2.5-inch shock absorbers are commonly selected for demanding off-road builds.
Benefits of a 2.5-Inch Mono-Tube Design
1. Improved Thermal Management
Repeated high-frequency suspension movement generates heat.
A larger shock can provide greater fluid volume and improved heat management, helping the damper maintain more consistent performance during demanding driving.
2. Stronger Damping Capability
A properly designed 2.5-inch shock can provide substantial damping capability for heavier vehicles and aggressive suspension setups.
3. Better Suitability for Overland Vehicles
Overland vehicles often carry considerable additional weight.
A vehicle may have:
- Roof tent
- Rear drawers
- Fridge
- Water tanks
- Recovery boards
- Winch
- Steel bumpers
- Spare tire
- Camping equipment
The suspension therefore needs to control a higher sprung and unsprung mass.
4. Better Control During Repeated Impacts
On corrugated roads, rocky trails and desert tracks, the suspension may cycle continuously.
A performance shock needs to control both compression and rebound while maintaining predictable handling.
Which Vehicles Can Use 2.5-Inch Shocks?
HPR’s product range includes 2.5-inch applications for numerous popular 4×4 platforms.
Examples include:
- Toyota Land Cruiser
- Toyota FJ Cruiser
- Toyota Tacoma
- Toyota Tundra
- Ford F-150
- Nissan Patrol
- Jeep platforms
- Mitsubishi Pajero
- Other off-road and overland vehicles
Specific fitment depends on the vehicle generation, suspension configuration and lift height.
Are 2.5-Inch Shocks Suitable for Daily Driving?
They can be.
The key is proper valving.
A high-performance off-road shock does not necessarily mean an uncomfortable ride on pavement.
When properly tuned for the vehicle, the shock can improve:
- Body control
- Cornering stability
- Suspension response
- Rebound control
- Vehicle stability with additional weight
The best setup is one that balances highway comfort with off-road control.
2.5 Mono-Tube vs Remote Reservoir
A standard 2.5-inch mono-tube shock places the primary working components inside the main shock body.
A remote-reservoir shock adds an external reservoir connected to the shock.
The remote reservoir can provide additional fluid and gas volume and can be useful for demanding applications.

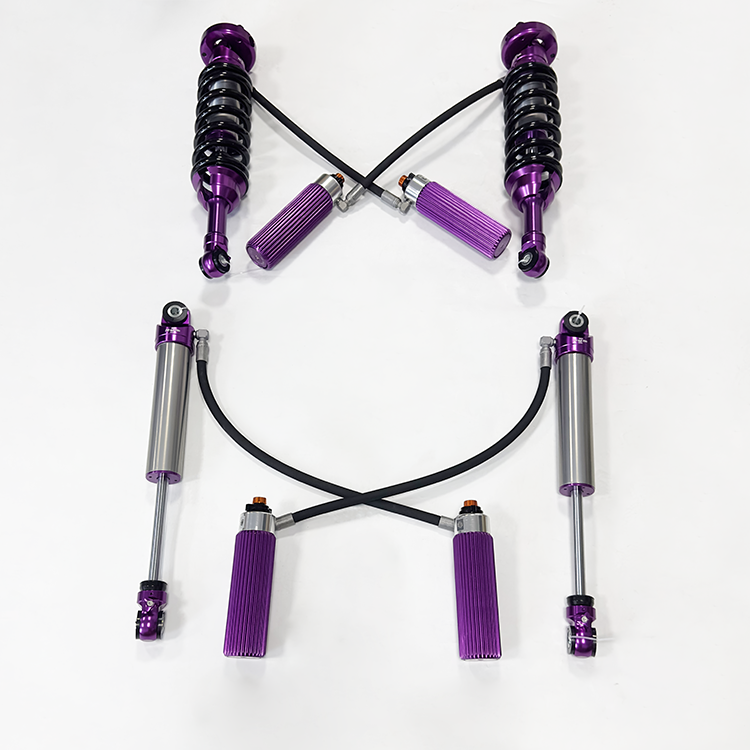

HPR also offers Double Hose Offroad Shox with remote reservoirs and compression/rebound adjustment for vehicles including Toyota Land Cruiser, Jeep Wrangler, Nissan Patrol, FJ Cruiser and other platforms.
Who Should Consider a 2.5 Mono-Tube Upgrade?
A 2.5-inch mono-tube shock is particularly worth considering if your vehicle:
- Has been lifted.
- Carries additional equipment.
- Uses larger tires.
- Travels frequently on rough roads.
- Is used for overlanding.
- Experiences repeated suspension impacts.
- Requires stronger damping control.
- Needs better performance than standard replacement shocks.
Final Thoughts
A suspension upgrade should always be considered as a complete system.
Installing larger shocks without considering spring rate, lift height, suspension travel and vehicle weight may not produce the expected results.
For a properly engineered 4×4, however, a 2.5-inch mono-tube shock can provide an excellent foundation for a high-performance suspension system.
For vehicle-specific 2.5-inch mono-tube applications, contact HPR Offroad Shocks.
