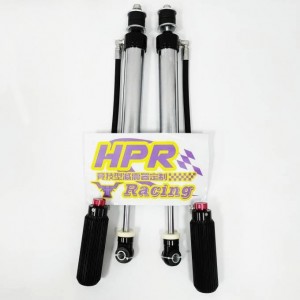

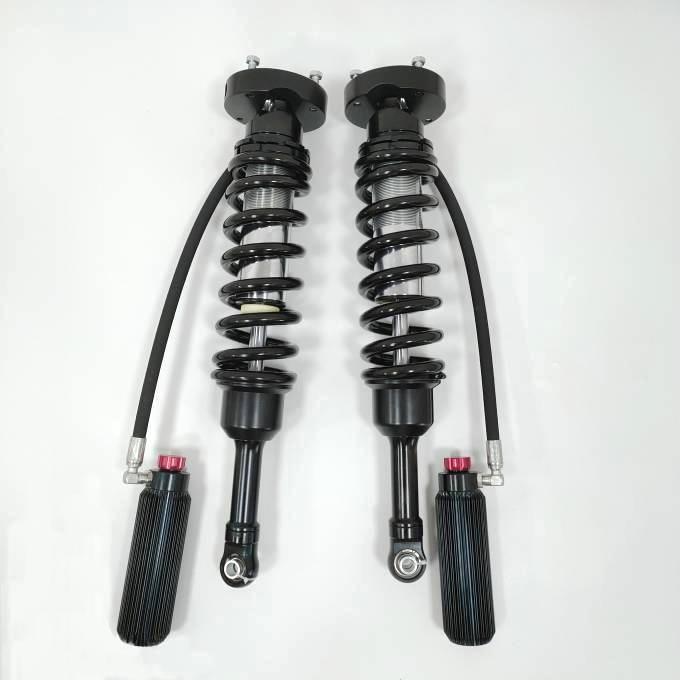

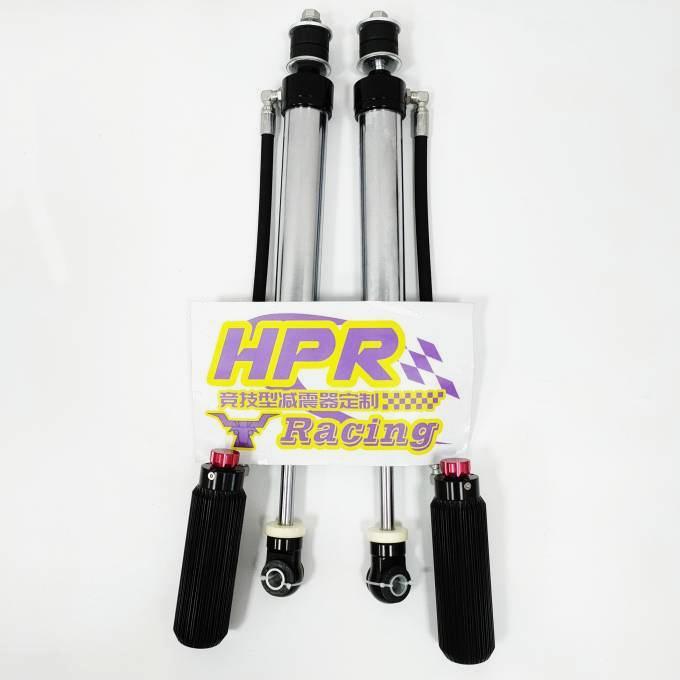

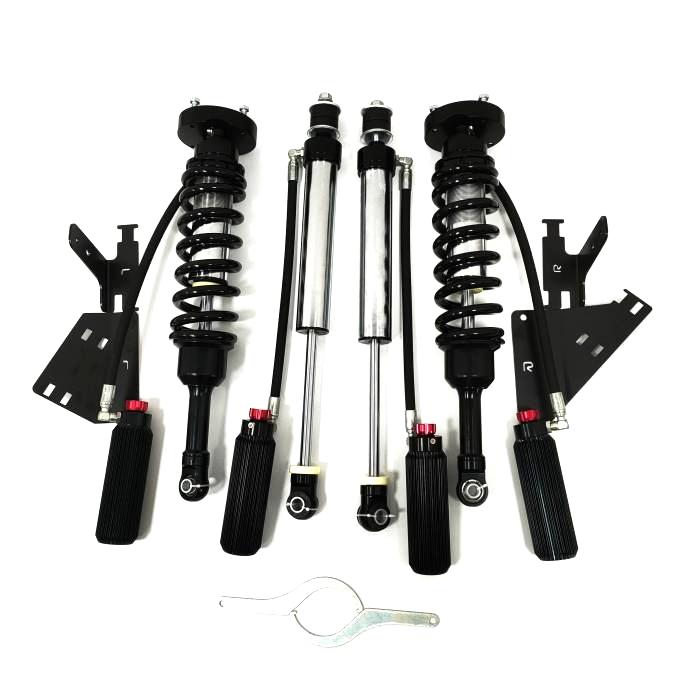

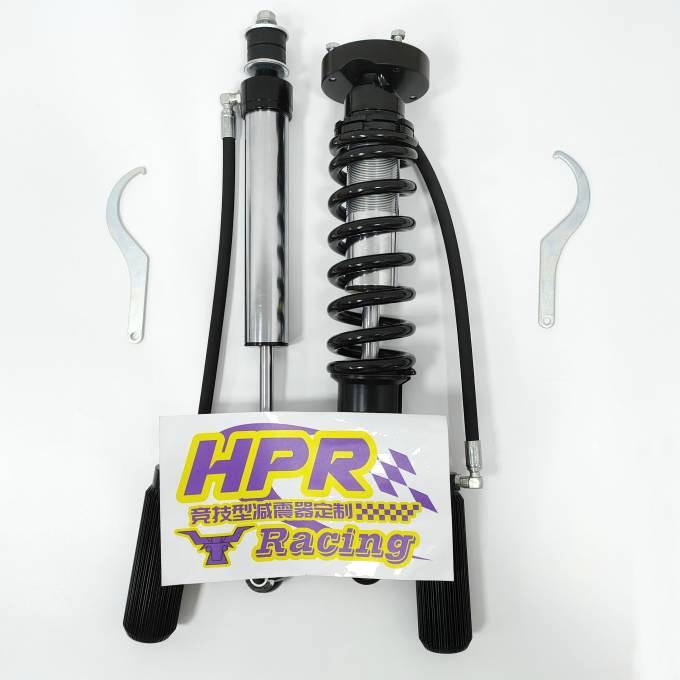

2.5/3.0 SHOX factory high performance 4×4 racing shocks 2.5 inches lift for TOYOTA LANDCRUISER 200, with remote reservoir

Short Description:

2.5/3.0 SHOX factory high performance offroad/4×4/overland/racing shocks/shox 2.5 inches lift for TOYOTA LANDCRUISER 200, hard and soft adjustable, with remote reservoir/subtank

Product Detail

Product Tags

Design Mono tube design
Body Front coilover, rear smooth body, seamless steel, internal & external polished and honed,
Body Plating  Environment friendly white zinc-galvanized surface,
Components CNC machined 6061 aluminum alloy
Hose German Continental brand oil hose, maximum pressure 22.4MPA
Valving Tunable, velocity sensitive deburred valve shims
Seal Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)wiper seal and scraper seal
Oil German FUCHS brand shock oil (freezing point lower than-53 ˚),Advanced suspension fluid for improved performance at variable temperatures.
Piston Rod 18mm/22mm diameter, hard chrome plated, heat-treated
Piston Rings PFTE materials
Bearing Spherical, PFTE-lined, heat-treated alloy steel
Body 6061 aluminum alloy, with heat dissipation system
Lubricant Japan made lubricant oil
Piston High or low flow piston
Adjustor CNC machined aluminum
Charge inlet Only specialist allowed operating the nitrogen releasing and charging

Diameter: 2.5/3.0 inches

Lift: 0/2/2.5inches lift available
Adjust: Compression 8 steps adjust
Compression 8 steps +rebound 6 steps adjust
Colors: red, yellow, green, pink, purple, black available
Payment terms: TT after order confirmation
New items development: 2 weeks and for free, but need offer necessary samples or drawing
MOQ: Starts from one set
Delivery time: 7-15 days after receiving the payment


Designed according to OE standard, easy to install

- Stable performance, suitable all kinds of driving conditions/all terrain
HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.
HPR shock absorbers provide tight grip and better manoeuving even in case of large load

-Comfortable, better manoeuving
Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.

-Protect car body and other spare parts
Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability


1、We’re professional offroad racing shock absorbers manufacturer, not trading company, you will get the best possible price and professional service.

2、we have more than 15-years-experience of researching, manufacturing original shock absorbers and all kinds of adjustable shock absorbers, very good relationship with all the supply chains of shock absorbers industry, and we invested the high-precision machining center to make sure all the metal parts high quality and precisely matching with each other.

3、We could meet customers’ special requirements, such as different colors: black, blue, red, purple, green, gray, etc, marking your logo on the shox body, specific outlook of metal parts, customerized packing,etc.

4、Stable and durable quality to make sure best performance during long distance racing driving in all terrain

5、We will offer free replacement wearing parts, such as oil seal, bearing along with shipments.

6、We designed 5 steps sealing system to make sure no oil leakage.


 Less than 5 sets: we suggest to deliver by express, such as TNT, DHL, FEDEX, UPS
More than 5 sets: we suggest to deliver by sea
Or, if you have forwarder in China, we can send goods to the appointed warehouse directly
Nearest sea port: Ningbo port, or Shanghai port of China
Every 1 piece shock packing in one carton, protected by PE Foam.
Normally, we use 5 walls neutral yellow cardboard export cartons, put application stickers on each side of the cartons
Color boxes will be accepted only when orders more than 50 sets.
Customer’s logo could be lasing mark on the aluminum parts of the shocks
